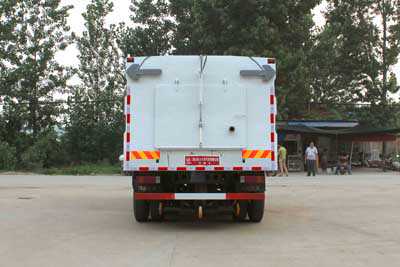

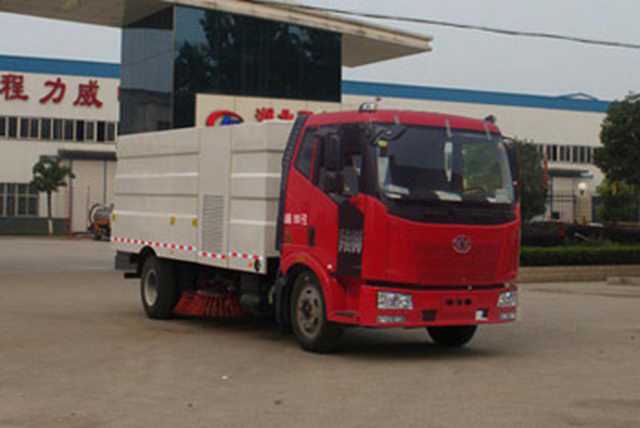

Liberate J6 washing and sweeping vehicle
Product Parameters
| CLW5160TXSC4 Sweeper Truck Main Technical Parameters | |||
| Product Name: | Sweeper truck | External dimensions: | 8400×2470×3000(mm) |
| Chassis model: | CA1160P62K1L2A1E4Z | Cargo box dimensions: | ××(mm) |
| Total mass: | 16000 (Kg) | Approach/Departure Angles: | 22/9(°) |
| Rated weight: | 4525 (Kg) | Front overhang and rear overhang: | 1400/2000(mm) |
| Curb weight: | 11280 (Kg) | Maximum speed: | 101 (km/h) |
| engine | Engine manufacturers | Displacement (ml) | Power (kW) |
| BF6M2012-22E4 BF6M2012-20E4 BF6M2012-18E4 |
China FAW Group Corporation | 6060 6060 6060 |
165 150 139 |
| Emission standards: | GB3847-2005, GB17691-2005 Country IV | ||
| Number of axes: | 2 | Front track: | 1914, 1914 (mm) |
| Wheelbase: | 5300, 5000, 4700, 4500, 4200, 4000, 3800, 3650, 5600 | Rear track: | 1847, 1860 (mm) |
| Number of tires: | 6 | Tire specifications: | 10.00-20 18PR,10.00R20 18PR,11R22.5 16PR,10.00-20 16PR,10.00R20 16PR |
| Fuel type: | diesel fuel | Number of leaf springs: | 10/12+8, 13/12+8, 12/12+8 |
| Axle load: | 6000/10000 | Number of passengers in the driver's cab: | 3 |
| Vehicle Notes: | Protective material: Q235A carbon steel; Connection method: Side protection exempted; Rear lower protection welded to sub-beam; Rear protection cross-section dimensions (mm): 100×50×5; Rear protection ground clearance (mm): 540; Wheelbase (mm): 5000. The vehicle is equipped with a chassis featuring ABS. ABS anti-lock braking system manufacturer: Changchun Kemi Automotive Brake Co., Ltd., Model: CM4XL. | ||
| Specialized features: | ★Product Introduction: The road sweeper is a new type of high-efficiency cleaning equipment that integrates road sweeping, garbage collection, and transportation. It is widely used for cleaning trunk highways, municipal roads, airport runways, urban residential areas, parks, and other roads. ★Main Configuration: ①Jiangling auxiliary engine (145, 153, Tianjin, and Da Isuzu models use Cummins 140hp auxiliary engines); American Eaton motor; French control switches; Haipruis solenoid valve group; Xiamen Nanchao automatic clutch; maintenance-free centrifugal fan; stainless steel water tank and garbage bin; rear LED arrow lights; manual pump emergency system. ② Equipped with 4 sweeping discs, maximum sweeping width 3.2m; suction particle size Φ120mm. ★Special Functions: Road sweepers not only clean up garbage but also purify the air on the road, ensuring road aesthetics, maintaining environmental hygiene, preserving good road surface condition, reducing and preventing traffic accidents, and further extending the service life of road surfaces. Using road sweepers for road maintenance has become a trend in China. ★Main advantages: ①It uses a combination of suction and sweeping to collect garbage, wet dust removal, electro-hydraulic control, and hydraulic tilting unloading to clean the road surface. ② An auxiliary engine is used to drive the blower and hydraulic system. This ensures continuous operation during travel and guarantees the continuity of the cleaning process. ③ The structure of “central four-disc brush + rear suction nozzle” is adopted, which facilitates the adjustment and maintenance of the cleaning device and suction nozzle, and the vehicle has good passability when moving between sites. ④ The transmission between the auxiliary engine and the fan is equipped with an automatic clutch, which can ensure that the auxiliary engine is automatically disengaged from the fan when starting under no-load and stopping, reducing the impact on the auxiliary engine and improving the working reliability and service life of the auxiliary engine. ⑤ The sweeping disc has an automatic obstacle avoidance protection function and an automatic reset function. It automatically retracts after encountering an obstacle and automatically resets after passing the obstacle. ⑥ The sweeping speed can be adjusted according to various cleaning conditions to ensure good cleaning results under various pollution conditions. ⑦ It adopts an advanced and efficient special fan and a fully floating suction nozzle that can automatically level with the road surface, resulting in good cleaning effect and long service life. | ||
