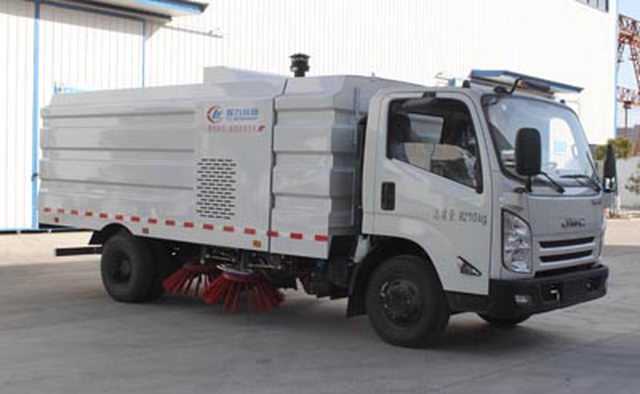

Jiangling sweeper truck

Specialized features:
1. It adopts Jiangling (3815 wheelbase) National V Class II chassis, single-row forward tilting cab, Chaichai 152 horsepower diesel engine, 6-speed manual transmission, 7.50R16 steel wire tires, power steering, air conditioning, electric windows, central locking, air brake, ABS.

2. The auxiliary engine is a powerful Cummins 140 horsepower engine, with a water tank capacity of 4 cubic meters and a garbage capacity of 4 cubic meters.

3. An automatic clutch drives the fan and high-pressure water pump, reducing the impact on the engine when the fan starts and stops. The clutch offers advantages such as high wear resistance, long service life, low noise, low fuel consumption, and cost savings during use.

4. It adopts a high-power, wear-resistant, maintenance-free centrifugal fan from Beibo Taixin, a listed company in Luoyang. It is noiseless, highly efficient, has a strong airflow, and a long service life.

5. The high-pressure water pump adopts the internationally renowned T7012IR type plunger pump from a joint venture, which has suitable flow rate, high pressure, and allows a maximum pressure of 10MPa.

6. The clean water tank makes full use of the vehicle space, with a large capacity of 4 cubic meters. It has a built-in water level alarm and the inside of the water tank is treated with anti-corrosion, anti-rust and anti-toxic treatment, making the water pump operation safer and ensuring cleaning efficiency.

7. The garbage bin features a double-layered stainless steel inner liner structure with a volume of 4 cubic meters. It is equipped with a filter screen to effectively prevent light debris such as leaves and plastic bags from clogging the vents and hindering dust discharge. A built-in wastewater alarm system allows for convenient drainage of wastewater to the sewer via a wastewater valve at the rear door, maximizing the use of the garbage bin's loading space. The bin uses a tilting unloading mechanism and is equipped with a high-pressure self-cleaning flushing device.

8. The self-cleaning device can assist in unloading and cleaning the inside of the garbage bin during unloading.

9. The left and right vertical sweepers each have a single sweeping disc, reducing the number of brushes and brush consumption, thus lowering operating costs. Water spray devices are installed on the brushes for dust suppression. The left and right vertical sweepers are controlled separately, enabling different operating modes such as right-side sweeping and full-area sweeping.

10. The wide suction nozzle has a suction opening width of 1800mm, ensuring a total working width of more than 2.8m. Four height-adjustable suction nozzle wheels allow for easy adjustment and ensure a proper gap between the nozzle and the road surface, resulting in better suction and higher efficiency.

11. The suction cup has a water spray bar inside, and the high-pressure washing nozzle is arranged inside the suction cup, which not only has a good cleaning effect, but also minimizes secondary pollution caused by the high-pressure water jets stirring up dirt.

12. The left and right spray bars are mounted on the suction cup and rise and fall with the suction cup. The structure is simple and compact, ensuring that the height of the spray bars from the ground remains constant, thus achieving the best cleaning effect.

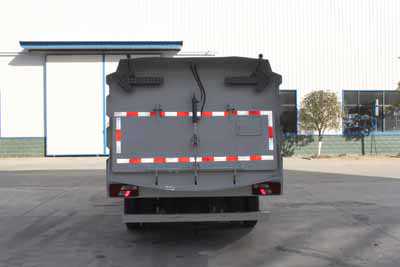

The rear of the carriage is equipped with an adjustable mist spray bar, which saves water while eliminating secondary pollution and beautifying the road surface.

13. The hydraulic components adopt an integrated and stacked design, with centralized electro-hydraulic control in the cab for convenient operation. The manual button-type hydraulic system in the cab drives the lifting and lowering of the left and right vertical sweepers, the rotation of the left and right sweeping ribs, the lifting and lowering of the suction nozzle, the opening and closing of the rear door of the garbage bin, and the tilting and resetting of the garbage bin, among other mechanical actions.

14. The sweeping disc cycloidal motor is an original import from Eaton in the United States, with a long service life, stable and reliable operation, and a low failure rate.

15. The hydraulic pipeline adopts a German standard sealing structure, which has good vibration resistance, high sealing reliability, and can achieve a leak-free sealing effect.
It adopts a Sino-foreign joint venture hydraulic solenoid valve, and the key electrical control components use German Siemens electrical switches, which are highly reliable and have a long service life.

16. The sweeping disc cycloidal motor is an original import from Eaton in the United States, with a long service life, stable and reliable operation, and a low failure rate.

17. The hydraulic pipeline adopts a German standard sealing structure, which has good vibration resistance, high sealing reliability, and can achieve a leak-free sealing effect.
It adopts a Sino-foreign joint venture hydraulic solenoid valve, and the key electrical control components use German Siemens electrical switches, which are highly reliable and have a long service life.

18. The subframe load-bearing beam is welded from square steel with a cross-section of 160mm in length, 80mm in width, and 10mm in thickness, ensuring the safety of the entire vehicle and making driving safer.

19. The exterior design is computer-generated, featuring high-mounted side skirts, curved transitions, and an overall harmonious and symmetrical appearance. This results in low fuel consumption, low noise, and a streamlined exterior design.
