| Vehicle technical parameters | |||

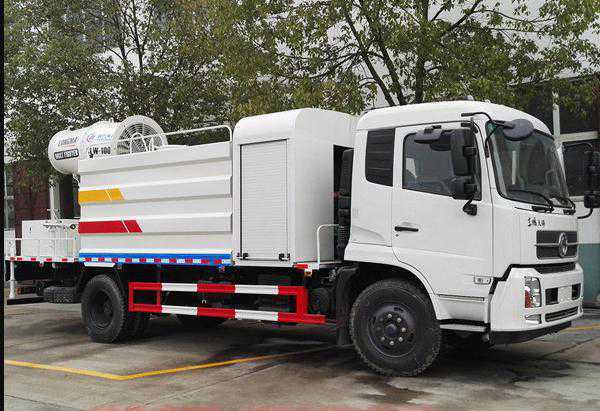

| Vehicle Name: | CLW5162TDYD5 Multi-functional Dust Suppression Truck | Announcement batches: | 297 |
| Product Trademark | Chengliwei brand | Product Number | |
| Vehicle model: | CLW5162TDYD5 | Table of Contents Number: | |
| Exempt from inspection: | release date: | 2017713 | |
| Total mass | 15800 (Kg) | Volume: | 6.7 |
| Rated load capacity | 6425 (Kg) | curb weight | 9180 (Kg) |
| External dimensions | 8350,8500,8700×2480×3550,3750(mm) | Cargo box dimensions | ××(mm) |
| Rated passenger capacity | (people) | Permitted total mass of trailer | (kg) |
| Driver's cab: | Front row passengers: | 3 people | |
| Anti-lock braking system: | have | Load capacity utilization factor | |
| Fuel type: | diesel fuel | Emission standards: | GB3847-2005, GB17691-2005 National V |
| Approach angle/departure angle: | (°) | Front/Rear Suspension: | (mm) |
| Number of axes: | 2 | Wheelbase: | 3800, 4200, 4500, 4700, 5000 (mm) |
| Number of tires: | 6 | Tire specifications: | 9.00R20 16PR,10.00-20 16PR,10.00-20 18PR,10.00R20 14PR,10.00R20 16PR,10.00R20 18PR,10R22.5 16PR,275/80R22.5,275/70R22.5 16PR,275/70R22.5 18P |
| Front track (mm): | 1880, 1900, 1920 | Rear track (mm): | 1800, 1860, 1820 |
| Axle load: | 5600/10200 | Maximum speed: | 98 (km/h) |
| other | Medium: Water, density: 1000 kg/m³, effective tank volume: 6.7 m³. Special device: dust suppression fog cannon. Overall vehicle length/wheelbase/rear overhang/overall vehicle height correspondence (mm): 8350/4200/2720/3550; 8500/4500/2570/3550; 8700/4700/2570/3750; 8700/5000/2270/3750. Protective material: Q235A carbon steel. Connection method: welded connection for left and right sides and lower rear protection. Rear protection cross-section dimensions (mm): 100×50. Rear protection ground clearance (mm): 510. Optional cab with chassis. ABS model: 3631010-C2000, 446004. | ||
