| Vehicle technical parameters |
| Vehicle Name: |

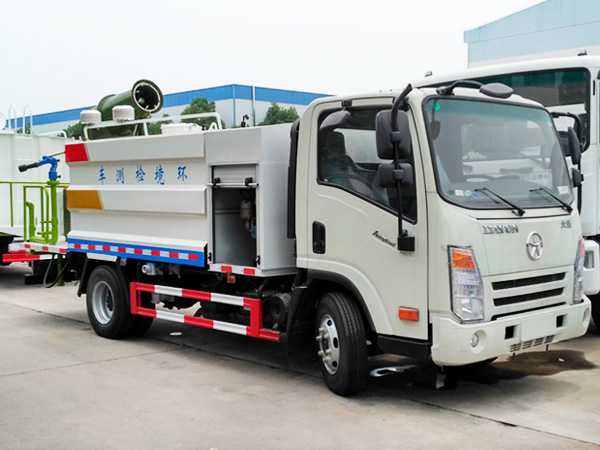

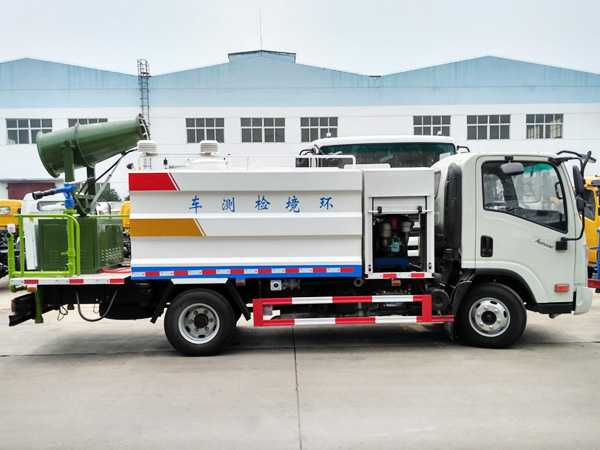

CLW5080TDY5 Multi-functional Dust Suppression Truck |
Announcement batches: |
298 |
| Product Trademark |
Chengliwei brand |
Product Number |
|
| Vehicle model: |
CLW5080TDY5 |
Table of Contents Number: |
(17) 74 |
| Exempt from inspection: |
|
release date: |
20170728 |
| Total mass |
8280 (Kg) |
Volume: |
4.09 |
| Rated load capacity |
3925,3990 (Kg) |
curb weight |
4160 (Kg) |
| External dimensions |
6500,6750,7100×2010×2760(mm) |
Cargo box dimensions |
××(mm) |
| Rated passenger capacity |
(people) |
Permitted total mass of trailer |
(kg) |
| Driver's cab: |
|
Front row passengers: |
3.2 (people) |
| Anti-lock braking system: |
have |
Load capacity utilization factor |
|
| Fuel type: |
diesel fuel |
Emission standards: |
GB17691-2005 Country V, GB3847-2005 |
| Approach angle/departure angle: |
20/12(°) |
Front/Rear Suspension: |
1150/2050 (mm) |
| Number of axes: |
2 |
Wheelbase: |
2800, 3300, 3550, 3900 (mm) |
| Number of tires: |
6 |
Tire specifications: |
7.50-16,7.50R16,8.25-16,8.25R16 |
| Front track (mm): |
1590, 1665, 1740, 1770 |
Rear track (mm): |
1540, 1640, 1650, 1700 |
| Axle load: |
3000/5280 |
Maximum speed: |
90 (km/h) |
| other |
The main purpose of this vehicle is dust suppression and haze reduction. The special device is a dust suppression fog cannon, model and manufacturer: LM-30, Hubei Longma Automobile Equipment Co., Ltd. Medium: Water, density: 1000 kg/m³, effective tank volume: 4.09 m³, tank dimensions (length × width × height) (mm): 2500 × 2010 × 1150; overall vehicle length/wheelbase relationship (mm): 6500/3300, 6750/3550, 7100/3900. The cab is optional with the chassis. Protective material: Q235A carbon steel, connection method: welded connection on both sides, bolted connection for the rear lower protection, rear lower protection cross-section dimensions (mm): 50 × 100, rear protection ground clearance (mm): 410. ABS manufacturers: WABCO Automotive Control Systems (China) Co., Ltd., model: ABS-E 4S/4M; Zhejiang Wan'an Technology Co., Ltd., model: VIE ABS-II. |
