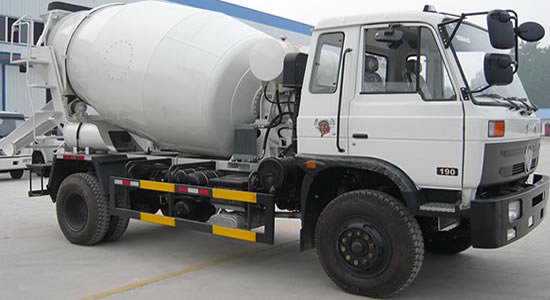

Dongfeng 6 cubic meter concrete mixer truck
Product Parameters
| Dongfeng 6 cubic meter concrete mixer truck: Main technical parameters | |||
| Product Name: | Dongfeng 6 cubic meter concrete mixer truck | External dimensions: | 8000×2500×3700(mm) |
| Chassis model: | EQ3120GSZ3GJ | Cargo box dimensions: | ××(mm) |
| Total mass: | 12000 (Kg) | Approach/Departure Angles: | 25/23(°) |
| Rated weight: | 4680 (Kg) | Front overhang and rear overhang: | 1250/2250(mm) |
| Curb weight: | 7125 (Kg) | Maximum speed: | 85 (km/h) |
| engine | Engine manufacturers | Displacement (ml) | Power (kW) |
| YC6J190-33 YC6J170-33 B190 33 B170 33 ISDe185 30 YC6J190-30 | Guangxi Yuchai Machinery Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Guangxi Yuchai Machinery Co., Ltd. | 6494 6494 5900 5900 6700 6500 | 140 125 140 125 136 140 |
| Emission standards: | GB3847-2005, GB17691-2005 Country III | ||
| Number of axes: | 2 | Front track: | 1940/1860(mm) |
| Wheelbase: | 4200,4500 | Rear track: | 1860 (mm) |
| Number of tires: | 6 | Tire specifications: | 10.00-20, 10.00R20 |
| Fuel type: | diesel fuel | Number of leaf springs: | 8/10+7 |
| Axle load: | 4000/8000 | Number of passengers in the driver's cab: | 3 |
| Vehicle Notes: | Mixing volume: 2.18 cubic meters. | ||
| Specialized features: | Our company specializes in manufacturing Dongfeng 140 concrete mixer trucks, Dongfeng 145 concrete mixer trucks, Dongfeng 153 concrete mixer trucks, Dongfeng Hercules concrete mixer trucks, Dongfeng Tianlong concrete mixer trucks, Jiefang double-axle concrete mixer trucks, Steyr concrete mixer trucks, Auman concrete mixer trucks, Hongyan concrete mixer trucks, and other special-purpose concrete mixer trucks for engineering projects. Our company manufactures concrete mixer trucks in various sizes, including 3 cubic meters, 3.5 cubic meters, 4 cubic meters, 5 cubic meters, 6 cubic meters, 8 cubic meters, 9 cubic meters, 10 cubic meters, and 12 cubic meters, to meet the needs of different customers. The chassis are selected from well-known domestic and international brands, and the oil pumps, hydraulic motors, and reducers are selected from well-known domestic and international brands such as Eaton (USA) and Bonfiglioli (Italy), ensuring the stable performance and reliable safety of the entire vehicle. A concrete mixer truck mainly consists of a chassis, mixing drum, transmission system (drive unit), hydraulic drive system, water supply system, loading (feeding) and unloading system, unloading chute, operating platform, control system and protective equipment. Mixing drum: The mixing drum used in this model is a commonly used structural form. The mixing drum has a pear-shaped structure. The cleaning water and the mixing water added as needed during transportation are all injected into the drum through the feed inlet at the head of the mixing drum. Transmission system: The mixing drum is driven by an engine as the power source. Power is taken from the power take-off unit at the rear of the engine and transmitted to the variable displacement piston hydraulic pump through the drive shaft. Then, through the fixed displacement piston oil motor, the mixing drum is driven to rotate by the reducer. The feeding and discharging system (loading and unloading mechanism) of the mixing drum is an important device that assists the operation of the mixing drum. The control system is the main control component of the mixer truck. The control panel has an "I"-shaped slot for the movement of the control levers; the rear half of the slot has limit holes to fix the position of the control levers. This control system uses two control levers located at the rear of the truck to control the forward and reverse rotation and speed of the mixing drum, thereby completing the feeding, discharging, and mixing actions. Water supply system: The water supply system of the concrete mixer truck is mainly used to clean the mixing unit. There are two types of water supply systems for this model: one is a centrifugal water pump water supply system; the other is a pressurized water tank water supply system, which can be selected by the user. | ||
