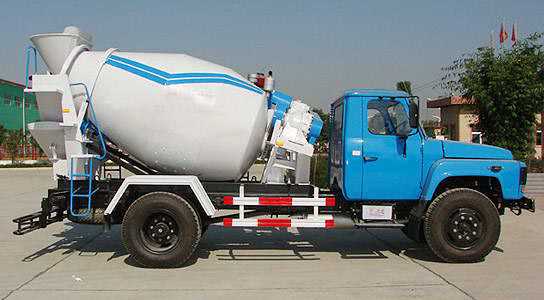

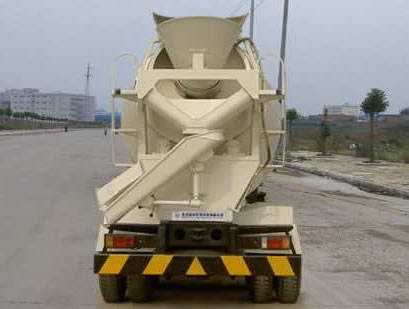

Dongfeng 140 pointed concrete mixer truck
Product Parameters
| Main technical parameters of Dongfeng 140 pointed-nose concrete mixer truck | |||
| Product Name: | Dongfeng 140 pointed concrete mixer truck | External dimensions: | 7460×2490×3100 (mm) |
| Outer dimensions: | EQ3070FSZ3GJ | Cargo box dimensions: | × (millimeters) |
| Total mass: | 7490 (kg) | Approaching/leaving corner: | 34/18, 34/20 (°) |
| Rated weight: | 2995 (kg) | Front overhang and rear overhang: | 1065/2445, 1065/2195 (mm) |
| Curb weight: | 4300 (kg) | Maximum speed: | 85 (km/h) |
| start up | Leading manufacturers | Displacement (ml) | Power (kilowatts) |
| YC4E170-31 YC4E160-31 YC4E160-33 | Guangxi Yuchai Machinery Co., Ltd. | 4260 4260 4260 | 125 118 118 |
| Emission standards: | GB3847-2005, GB17691-2005 Country III | ||
| Number of axes: | 2 | Front track: | 1810, 1900/1800, 1860 (mm) |
| Wheelbase: | 3950,4200 | Rear track: | 1800, 1860 (mm) |
| Tire number: | 6 | Tire specifications: | 8.25-20 |
| Fuel type: | nickel | Number of leaf springs: | 9/11+8 |
| Axle load: | 2510/4980 | Number of passengers in the driver's cab: | 3 |
| Vehicle Notes: | The mixing volume of the tank is 1.33 cubic meters. | ||
| Specialized features: | Our company specializes in manufacturing Dongfeng 140 concrete mixer trucks, Dongfeng 145 concrete mixer trucks, Dongfeng 153 concrete mixer trucks, Dongfeng Qianglishen concrete mixer trucks, Dongfeng Tianlong concrete mixer trucks, Jiefang double-axle concrete mixer trucks, Steyr concrete mixer trucks, Auman concrete mixer trucks, Hongyan concrete mixer trucks, and other special concrete mixer and transport vehicles for engineering projects. Our company manufactures concrete mixer trucks in various sizes, including 3, 3.5 cubic meters, 4 cubic meters, 5 cubic meters, 6 cubic meters, 8 cubic meters, 9 cubic meters, 10 cubic meters, and 12 cubic meters, to meet the needs of different customers. Customization uses well-known brands, and the oil pumps, hydraulic motors, and sprayers are from renowned brands such as Eaton and Bonfiglioli, ensuring the stable performance and reliable safety of the entire vehicle. A concrete mixer truck mainly consists of a chassis, mixing drum, transmission system (drive unit), hydraulic drive system, water supply system, loading (feeding) and unloading system, unloading chute, operating platform, lifting system and protective equipment. Mixing drum: The mixing drum used in this hardness test is a commonly used structural form. The mixing drum adopts a pear-shaped structure. The cleaning water and the mixed water added as needed during transportation are all injected into the drum through the feed inlet. The mixing drum is driven by an engine as the power source. Power is taken from the power take-off unit at the head of the engine and transmitted to the variable displacement piston hydraulic pump through the drive shaft. The fixed displacement piston oil motor then drives the mixing drum to rotate through the drive shaft. The feeding and discharging system (loading and unloading mechanism) of the mixing drum is an important device that assists the operation of the mixing drum. The lifting system is the control component of the entire mixer truck. The lifting panel has an "I-shaped" slot, providing space for the lifting boom to move; the rear half of the slot has limit holes for fixing the position of the lifting boom. This lifting system controls the uprighting, forking, and movement of the drum via two lifting booms on the left and right sides at the rear of the truck, thereby completing the feeding, discharging, and mixing operations. Water supply system: The water supply system of the concrete mixer truck is mainly used for cleaning the mixing equipment. There are two types of water supply systems: one is a centrifugal water supply system; the other is a pressurized water tank water supply system, which is an optional system for users. | ||
