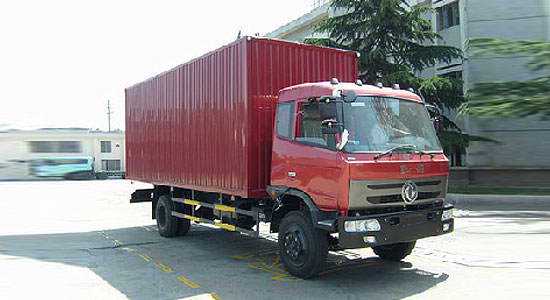

Dongfeng flat-head van
Product Parameters
| Dongfeng Flat-Head Box Truck Main Technical Parameters | |||
| Product Name: | Dongfeng flat-head van | External dimensions: | 8965,8465×2450×3460,3760(mm) |
| Chassis model: | EQ1120ZSZ3GJ | Cargo box dimensions: | 6600,6100×2274×2100,2400(mm) |
| Total mass: | 11795 (Kg) | Approach/Departure Angles: | 30/16, 30/15 (°) |
| Rated weight: | 4800 (Kg) | Front overhang and rear overhang: | 1250/2715, 1250/2515 (mm) |
| Curb weight: | 6800 (Kg) | Maximum speed: | 95 (km/h) |
| engine | Engine manufacturers | Displacement (ml) | Power (kW) |
| YC4E140-31 YC4E160-31 ISDe140 30 ISDe160 30 EQD160-30 YC4E140-33 YC4E160-33 YC6J160-33 | Guangxi Yuchai Machinery Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Commercial Vehicle Engine Plant of Dongfeng Motor Co., Ltd. Guangxi Yuchai Machinery Co., Ltd. | 4260 4260 4500 4500 6234 4260 4260 6494 | 103 118 103 118 118 105 118 118 |
| Emission standards: | GB3847-2005,GB17691-2005 Country III | ||
| Number of axes: | 2 | Front track: | 1800/1810(mm) |
| Wheelbase: | 5000, 4700 | Rear track: | 1810 (mm) |
| Number of tires: | 6 | Tire specifications: | 9.00-20, 9.00R20 |
| Fuel type: | diesel fuel | Number of leaf springs: | 9/11+8 |
| Axle load: | 3950/7845 | Number of passengers in the driver's cab: | 3 |
| Vehicle Notes: | The top of the cargo box is closed and cannot be opened. The external dimensions, the internal dimensions of the cargo box side panels, the wheelbase, the departure angle, and the rear overhang are in a one-to-one correspondence; the change in mass parameters caused by the change in dimensions is less than 3%, so only one curb weight is indicated. | ||
| Specialized features: | The body material of the box truck can be: ① corrugated iron, ② color steel plate, ③ aluminum plate, ④ aluminum alloy corrugated, ⑤ foamed insulation. Box truck options: rear door, left and right door, fully enclosed, semi-enclosed, and stake box. Scope of application: Box trucks are widely used for transporting various goods. They are suitable for major factories, supermarkets, and individuals. Optional equipment: The rear side of the box truck can be equipped with a rear hydraulic pallet, which can lift 0.5-5 tons of heavy objects. Classification (1) According to brand classification: Dongfeng box truck, Jiefang box truck, Isuzu box truck, JAC box truck, Jiangling box truck, Foton box truck. According to shape classification: single axle. Box truck, double-axle box truck, flat-head box truck, pointed-head box truck (2) Classified by type: Xiaobawang box truck, Dolica box truck, Sanpingchai box truck, Dongfeng Kangba box truck, 145 box truck, 153 box truck, 1208 box truck, 1230 box truck, 1290 box truck, semi-trailer box truck, (3) Classified by purpose: stake-type transport vehicle, box truck The structure of the cargo part is a closed box and is independent of the driver's cab. Box trucks are safer and more beautiful than ordinary trucks, and the goods will not get wet in the rain. | ||
