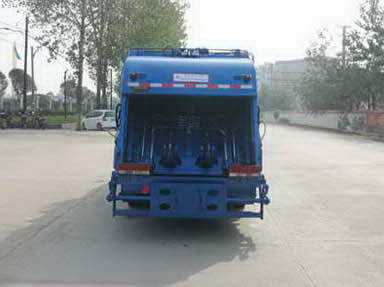

Dongfeng Jinba Compressed Garbage Truck
Product Parameters
| Dongfeng Jinba Compactor Garbage Truck Main Technical Parameters | |||
| Product Name: | Dongfeng Kingba Compactor Garbage Truck | External dimensions: | 6450×2050×2500(mm) |
| Chassis model: | EQ1060TJ20D3 | Cargo box dimensions: | ××(mm) |
| Total mass: | 6495 (Kg) | Approach/Departure Angles: | 19/10(°) |
| Rated weight: | 1000,935 (Kg) | Front overhang and rear overhang: | 1032/2118(mm) |
| Curb weight: | 5365 (Kg) | Maximum speed: | 95 (km/h) |
| engine | Engine manufacturers | Displacement (ml) | Power (kW) |
| YC4F90-30 CY4102-C3F YN27CR YN30CR SD4BW70-3R 4D22E YCND27-90-30 YCND27-100-30 CY4100-E3F 4JB1TI | Guangxi Yuchai Machinery Co., Ltd., Dongfeng Chaoyang Diesel Engine Co., Ltd., Chengdu Yunnei Power Co., Ltd., Jiangsu Sida Power Machinery Group Co., Ltd., Anhui Quanchai Power Co., Ltd., Guangxi Yuchai Machinery Co., Ltd., Guangxi Yuchai Machinery Co., Ltd., Dongfeng Chaoyang Diesel Engine Co., Ltd., Chengdu Chengfa Automobile Engine Co., Ltd. | 2659 3856 2672 2977 2545 2156 2659 2659 3707 2771 | 66 70 66 76 70 65 66 75 73 75 |
| Emission standards: | GB3847-2005,GB17691-2005 Country III | ||
| Number of axes: | 2 | Front track: | 1506/1466 (mm) |
| Wheelbase: | 3300 | Rear track: | 1466 (mm) |
| Number of tires: | 6 | Tire specifications: | 7.00-16,6.50-16,7.00R16,6.50R16 |
| Fuel type: | diesel fuel | Number of leaf springs: | 8/9+5, 6/8+4 |
| Axle load: | 2570/3925 | Number of passengers in the driver's cab: | 2,3 |
| Vehicle Notes: | The cab has a capacity of 2 people and a load capacity of 1000kg. The cab is optional and is installed with the chassis. | ||
| Specialized features: | Our company specializes in producing Dongfeng Xiaobawang garbage trucks, Dongfeng Dolica garbage trucks, Dongfeng 140 garbage trucks, Dongfeng 145 garbage trucks, Dongfeng 153 garbage trucks, etc. Customers can provide their own chassis, and our factory will provide the production and modification of the superstructure components. Our garbage trucks feature simple structure, stable and convenient operation, high loading and unloading efficiency, high degree of mechanization, and labor savings. Garbage trucks are widely used in sanitation, municipal, industrial and mining enterprises, residential communities, and residential areas with large and concentrated garbage. One truck can carry multiple large containers, effectively preventing secondary pollution during loading, unloading, and transportation. The modified parts are detachable from the original chassis, facilitating maintenance while maintaining the original vehicle's maneuverability and driving performance. Customers with special requirements for garbage trucks can call our company. We can design and modify trucks according to their needs, and can also add features such as power steering and air conditioning. | ||
