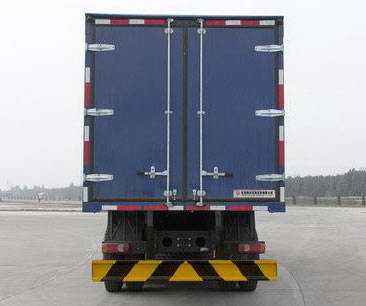

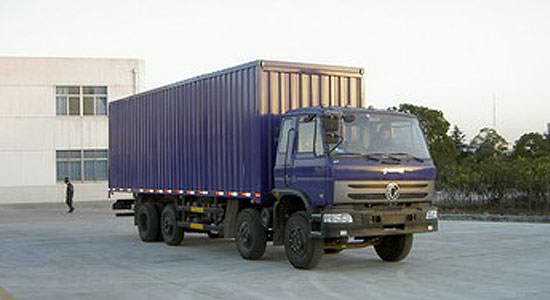

Dongfeng 4x6 box truck
Product Parameters
| Dongfeng 4x6 Box Truck Main Technical Parameters | |||
| Product Name: | Dongfeng 4x6 box truck | External dimensions: | 11980,11000×2480,2500×3850(mm) |
| Chassis model: | EQ1240WSZ3GJ | Cargo box dimensions: | 9500,8600×2294,2400×2400(mm) |
| Total mass: | 24490 (Kg) | Approach/Departure Angles: | 32/15, 32/18 (°) |
| Rated weight: | 11995 (Kg) | Front overhang and rear overhang: | 1205/3225, 1205/2245 (mm) |
| Curb weight: | 12300 (Kg) | Maximum speed: | 85 (km/h) |
| engine | Engine manufacturers | Displacement (ml) | Power (kW) |
| ISDe245 30 YC6A240-31 YC6A240-33 YC6A260-33 C245 33 C260 33 CA6DF3-24E3F | Dongfeng Cummins Engine Co., Ltd., Guangxi Yuchai Machinery Co., Ltd., Guangxi Yuchai Machinery Co., Ltd., Dongfeng Cummins Engine Co., Ltd., Dongfeng Cummins Engine Co., Ltd., FAW Jiefang Automobile Co., Ltd., Wuxi Diesel Engine Plant | 6700 7255 7255 7255 8300 8300 7120 | 180 177 177 191 180 191 180 |
| Emission standards: | GB3847-2005,GB17691-2005 Country III | ||
| Number of axes: | 4 | Front track: | 1950/1950/1950/1860(mm) |
| Wheelbase: | 1950+4250+1350, 1950+4250+1400 | Rear track: | 1950/1860 (mm) |
| Number of tires: | 10 | Tire specifications: | 10.00-20,10.00R20,11.00-20,11.00R20 |
| Fuel type: | diesel fuel | Number of leaf springs: | 8/8/8/10+8 |
| Axle load: | 4250/4270/4880/11090 | Number of passengers in the driver's cab: | 3 |
| Vehicle Notes: | The cab is optional and depends on the chassis; the top of the cargo box is closed and cannot be opened; the sides are available with or without doors; the change in mass parameters due to the change in cargo box configuration is less than 3%, which is negligible. | ||
| Specialized features: | The body material of the box truck can be: ① corrugated iron, ② color steel plate, ③ aluminum plate, ④ aluminum alloy corrugated, ⑤ foamed insulation. Box truck options: rear door, left and right door, fully enclosed, semi-enclosed, and stake box. Scope of application: Box trucks are widely used for transporting various goods. They are suitable for major factories, supermarkets, and individuals. Optional equipment: The rear side of the box truck can be equipped with a rear hydraulic pallet, which can lift 0.5-5 tons of heavy objects. Classification (1) According to brand classification: Dongfeng box truck, Jiefang box truck, Isuzu box truck, JAC box truck, Jiangling box truck, Foton box truck. According to shape classification: single axle. Box truck, double-axle box truck, flat-head box truck, pointed-head box truck (2) Classified by type: Xiaobawang box truck, Dolica box truck, Sanpingchai box truck, Dongfeng Kangba box truck, 145 box truck, 153 box truck, 1208 box truck, 1230 box truck, 1290 box truck, semi-trailer box truck, (3) Classified by purpose: stake-type transport vehicle, box truck The structure of the cargo part is a closed box and is independent of the driver's cab. Box trucks are safer and more beautiful than ordinary trucks, and the goods will not get wet in the rain. | ||
