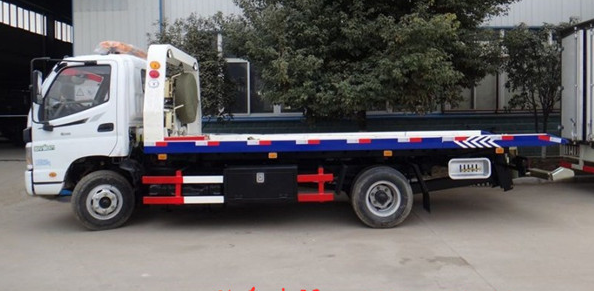

Foton 5.6-meter flatbed wrecker
Product Parameters
|
Vehicle technical parameters | |||
|
Product Name |
Wrecker truck |
External dimensions |
7.39 x 2.35 x 2.4 meters |
|
Total mass |
8.28 meters |
curb weight |
5.33 tons |
|
Flat panel size |
5.6 x 2.33 meters |
Plate thickness |
4 thick |
|
hoist specifications |
4 tons |
Top |
4 tons |
|
Chassis technical parameters | |||
|
Chassis Name |
Futian brand |
Chassis Model |
BJ1089VEJEA-F2 |
|
Number of axes |
2 |
Number of tires |
7 (including spare tire) |
|
wheelbase |
3.815 meters |
Tire specifications |
7.50R16 |
|
gearbox |
5 gears |
Rear axle |
6 tons |
|
Fuel types |
diesel fuel |
brake |
Air brake |
|
Emission standards |
GB17691-2005 Country V, GB3847-2005 | ||
|
Engine Model |
Engine manufacturers |
Displacement (ml) |
horsepower |
|
ISF3.8s5154 |
Beiqi Foton |
3760 |
156 |
|
Basic configuration of the upper body | |||
|
Standard configuration |
4-ton superstructure, equipped with a 4-ton winch, 25-meter steel wire rope, a pair of auxiliary wheel trolleys, a pair of figure-seven forks, a pair of square sockets, 4 sets of straps, chain hooks, two work lights, a yellow electronic engineering warning light, and a set of on-board tools. | ||
|
Optional configuration |
Imported components can be added, including tow forks, tow fork mounts, handwashing station, LED long row flashing warning lights, and full floor mounting. | ||
