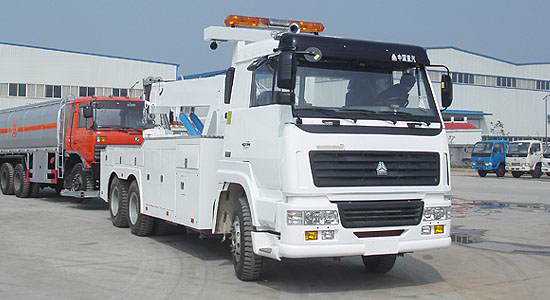

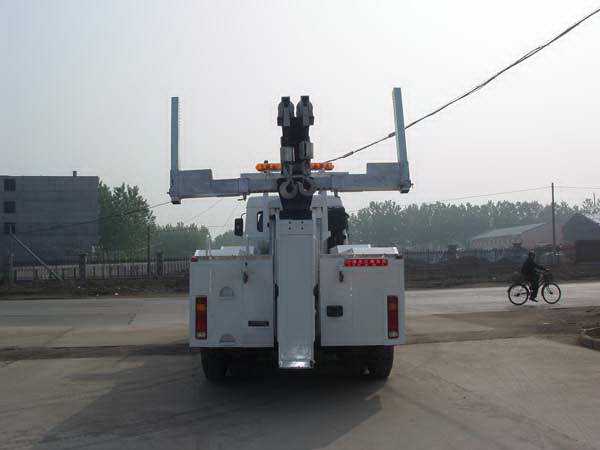

Steyr rear dual-axle tow truck
Product Parameters
| Steyr Rear Dual Axle Wrecker Truck: Main Technical Parameters | |||
| Product Name: | Steyr rear dual-axle tow truck | External dimensions: | 9500×2500×3550,3600(mm) |
| Chassis model: | ZZ1256M4646C | Cargo box dimensions: | ××(mm) |
| Total mass: | 25000 (Kg) | Approach/Departure Angles: | 15/14(°) |
| Rated weight: | (Kg) | Front overhang and rear overhang: | 1560/1990(mm) |
| Curb weight: | 19880 (Kg) | Maximum speed: | 90 (km/h) |
| engine | Engine manufacturers | Displacement (ml) | Power (kW) |
| WD615.92 WD615.93 WD615.92E WD615.93E WD615.97C WD615.97E WD615.92C WD615.93C | China National Heavy Duty Truck Group Co., Ltd. | 9726 9726 9726 9726 9726 9726 9726 9726 | 196 213 196 213 221 221 198 213 |
| Emission standards: | GB17691-2005 Phase III, GB3847-2005 | ||
| Number of axes: | 3 | Front track: | 1939,1958/1800/1800,1830/1830(mm) |
| Wheelbase: | 4325+1350, 4600+1350 | Rear track: | 1800/1800, 1830/1830 (mm) |
| Number of tires: | 10 | Tire specifications: | 11:00-20:00, 12:00-20 |
| Fuel type: | diesel fuel | Number of leaf springs: | 9/12, 10/12, 10/- |
| Axle load: | 7000/18000 (dual-axis configuration) | Number of passengers in the driver's cab: | 2 |
| Vehicle Notes: | Lifting capacity: 4990kg; When equipped with the Steyr King high-roof cab as an option, the overall height is 3600mm. | ||
| Specialized features: | Our company specializes in modifying and producing Dongfeng Xiaobawang tow trucks, Dongfeng Dolica tow trucks, Dongfeng Dolica flatbed tow trucks, Qingling Isuzu flatbed tow trucks, Dongfeng Sanpingchai tow trucks, Dongfeng 140 tow trucks, Dongfeng 145 tow trucks, Dongfeng 153 tow trucks, Dongfeng 1208 tow trucks, and other Dongfeng, Jiefang, Steyr, Qingling, and JAC series road clearing vehicles. Wrecker vehicles are built on a specialized cargo chassis and equipped with lifting, towing, and hoisting devices. They feature functions such as lifting, towing, hoisting, a lifting platform, and back-loading transport. They are easy and quick to operate, aesthetically pleasing, and safe and reliable. Widely used by highway departments, traffic police, airports, docks, auto repair shops, and expressway companies, they can promptly and quickly clear accident-damaged, broken-down, and illegally parked vehicles. Wreckers can be classified into light, medium-heavy, and super-heavy types based on their clearing capabilities; they can also be classified into tow-and-lift separation type, tow-and-lift integrated type, flatbed back-loading type, and platform lifting type based on the structural characteristics of their working devices; and they can be classified into boom rotating type, boom sliding type, and tow folding (load-bearing) type based on the unique functions of their booms and tow arms. For users with special requirements for road clearing vehicles, please call Dongfeng Modification Factory. We can design and modify vehicles according to user orders, and can add accessories such as power steering and air conditioning. | ||
