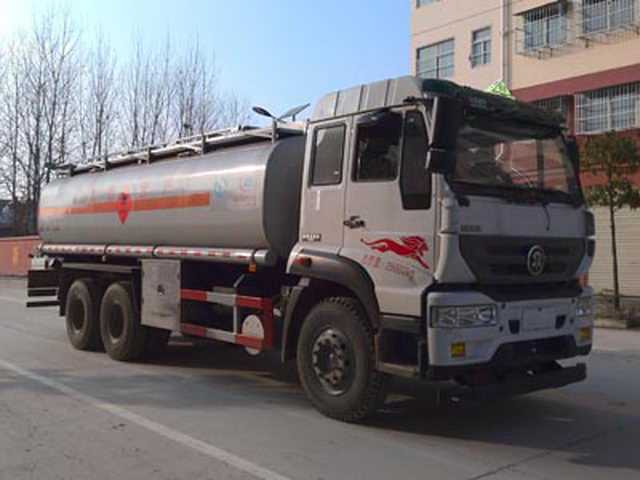

Steyr 17 cubic fuel truck
Product Parameters
| CLW5258GYYZ5 Oil Tanker Truck Main Technical Parameters | |||
| Product Name: | oil tanker | External dimensions: | 9500×2500×3100(mm) |
| Chassis model: | ZZ1251N464GE1 | Cargo box dimensions: | ××(mm) |
| Total mass: | 25000 (Kg) | Approach/Departure Angles: | 13/14(°) |
| Rated weight: | 13400, 13465 (Kg) | Front overhang and rear overhang: | 1320/2480(mm) |
| Curb weight: | 11405 (Kg) | Maximum speed: | 80 (km/h) |
| engine | Engine manufacturers | Displacement (ml) | Power (kW) |
| MC07.28-50 MC07.31-50 |
China National Heavy Duty Truck Group Co., Ltd. | 6870 6870 |
206 228 |
| Emission standards: | GB17691-2005 Country V, GB3847-2005 | ||
| Number of axes: | 3 | Front track: | 2035/1850/1850(mm) |
| Wheelbase: | 4350+1350, 4550+1350 | Rear track: | 1850/1850(mm) |
| Number of tires: | 10 | Tire specifications: | 11.00-20,11.00R20 16PR,12R22.5 16PR,295/80R22.5 16PR |
| Fuel type: | diesel fuel | Number of leaf springs: | 3/5, 3/10, 11/10, 11/12, 3/-, 11/-, 3/4 |
| Axle load: | 7000/18000 (dual-axis configuration) | Number of passengers in the driver's cab: | 3,2 |
| Vehicle Notes: | This vehicle is suitable for transporting dangerous goods. The transport media are diesel, gasoline, and kerosene, with densities of 0.83 tons/cubic meter, 0.76 tons/cubic meter, and 0.80 tons/cubic meter respectively. Class Item No.: 3. Effective tank volume: 16.9 cubic meters. Tank dimensions (length/major axis/minor axis) (mm): 6900/2330/1540. Protective material: Q235A carbon steel. Connection method: welded connections for both sides and the lower rear. Rear protection cross-section dimensions (mm): 100×50. Rear protection ground clearance (mm): 510. It uses MC07.28-50 or MC07.31-50 engines, with corresponding fuel consumption values (L/100km) of 35.5 and 35.7 respectively. This vehicle uses only radial tires and a chassis with ABS; it has disc brakes on the front wheels, a front-mounted exhaust pipe, and a speed limiter set at 80 km/h. It is equipped with a driving recorder with satellite positioning functionality. The ABS system model is 4460046300, manufactured by WABCO Automotive Control Systems (China) Co., Ltd. It uses only a chassis with a wheelbase of 4350+1350mm. This prototype uses leaf springs and does not have an optional air suspension system. | ||
