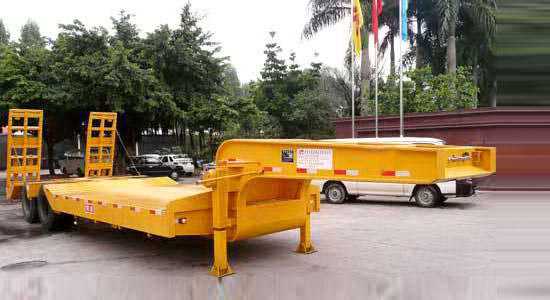

low flatbed semi-trailer 2
Product Parameters
| Low Flatbed Semi-Trailer Main Technical Parameters | |||
| Product Name: | low flatbed semi-trailer | External dimensions: | 11340×3000×2850(mm) |
| Chassis model: | Cargo box dimensions: | ××(mm) | |
| Total mass: | 34500 (Kg) | Approach/Departure Angles: | -/13(°) |
| Rated weight: | 26000 (Kg) | Front overhang and rear overhang: | -/1560(mm) |
| Curb weight: | 8500 (Kg) | Maximum speed: | (km/h) |
| Number of axes: | 2 | Front track: | -/2150/2150(mm) |
| Wheelbase: | 8030+1300 | Rear track: | 2150/2150(mm) |
| Number of tires: | 8 | Tire specifications: | 8.25-20 |
| Fuel type: | Number of leaf springs: | -/8/8 | |
| Axle load: | -/18000 (two shafts mounted in parallel) | Number of passengers in the driver's cab: | |
| Vehicle Notes: | The vehicle is connected to the tractor in a "goose neck" structure.The vehicle's cargo platform is 820 mm above the ground and is only used for transporting non-detachable objects. The vehicle is equipped with reflective markings on the sides and rear. | ||
| Specialized features: | A semi-trailer is a trailer whose axle is located behind the vehicle's center of gravity (when the vehicle is evenly loaded) and equipped with a coupling device that can transfer horizontal or vertical forces to the tractor. Our company's semi-trailer series features a reasonable structure, attractive appearance, good braking performance, high reliability, and ergonomic design. They are characterized by large loading capacity, stable loading of goods, and robust construction. Our factory has fully passed ISO9001-2000 international quality system certification, and our products have all passed 3C certification. We are a well-known domestic brand and a trusted product in Hubei Province. Welcome customers to contact us for inquiries and orders. Compared to monocoque trucks, semi-trailers can significantly improve the overall economic efficiency of road transportation. Transportation efficiency can be increased by 30-50%, costs reduced by 30-40%, and fuel consumption decreased by 20-30%. More importantly, the use of semi-trailers can also promote the organization of logistics in my country to a certain extent. | ||
