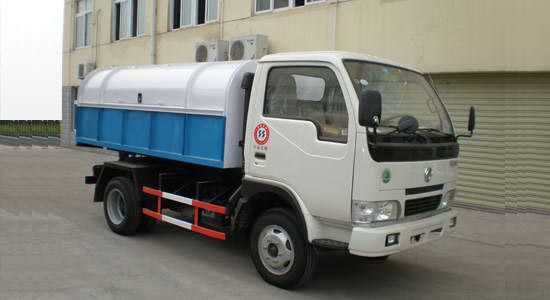

Dongfeng Xiaobawang Sealed Garbage Truck
Product Parameters
| Dongfeng Xiaobawang Sealed Garbage Truck: Main Technical Parameters | |||
| Product Name: | Dongfeng Xiaobawang Sealed Garbage Truck | External dimensions: | 5100×1860×2230(mm) |
| Chassis model: | EQ1040TJ20D1 | Cargo box dimensions: | ××(mm) |
| Total mass: | 4495 (Kg) | Approach/Departure Angles: | 19/15(°) |
| Rated weight: | 1650 (Kg) | Front overhang and rear overhang: | 962/1538(mm) |
| Curb weight: | 2715 (Kg) | Maximum speed: | 90 (km/h) |
| engine | Engine manufacturers | Displacement (ml) | Power (kW) |
| YC4F90-30 YN30CR YN27CR YN27PE-1 | Guangxi Yuchai Machinery Co., Ltd. Chengdu Yunnei Power Co., Ltd. Chengdu Yunnei Power Co., Ltd. Chengdu Yunnei Power Co., Ltd. | 2659 2977 2672 2672 | 66 76 66 66 |
| Emission standards: | GB3847-2005, GB17691-2005 Country III | ||
| Number of axes: | 2 | Front track: | 1430/1458 (mm) |
| Wheelbase: | 2600 | Rear track: | 1458 (mm) |
| Number of tires: | 6 | Tire specifications: | 7.00-16,6.50-16, 7.00R16, 6.50R16 |
| Fuel type: | diesel fuel | Number of leaf springs: | 6/8+4, 8/9+5 |
| Axle load: | 1680/2815 | Number of passengers in the driver's cab: | 2 |
| Vehicle Notes: | The cab is optional and can be selected based on the chassis. | ||
| Specialized features: | Our company specializes in producing Dongfeng Xiaobawang garbage trucks, Dongfeng Dolica garbage trucks, Dongfeng 140 garbage trucks, Dongfeng 145 garbage trucks, Dongfeng 153 garbage trucks, etc. Customers can provide their own chassis, and our factory will provide the production and modification of the superstructure components. Our garbage trucks feature simple structure, stable and convenient operation, high loading and unloading efficiency, high degree of mechanization, and labor savings. Garbage trucks are widely used in sanitation, municipal, industrial and mining enterprises, residential communities, and residential areas with large and concentrated garbage. One truck can carry multiple large containers, effectively preventing secondary pollution during loading, unloading, and transportation. The modified parts are detachable from the original chassis, facilitating maintenance while maintaining the original vehicle's maneuverability and driving performance. Customers with special requirements for garbage trucks can call our company. We can design and modify trucks according to their needs, and can also add features such as power steering and air conditioning. | ||
