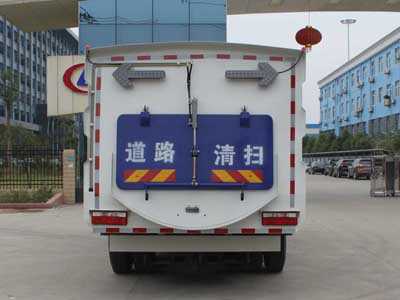

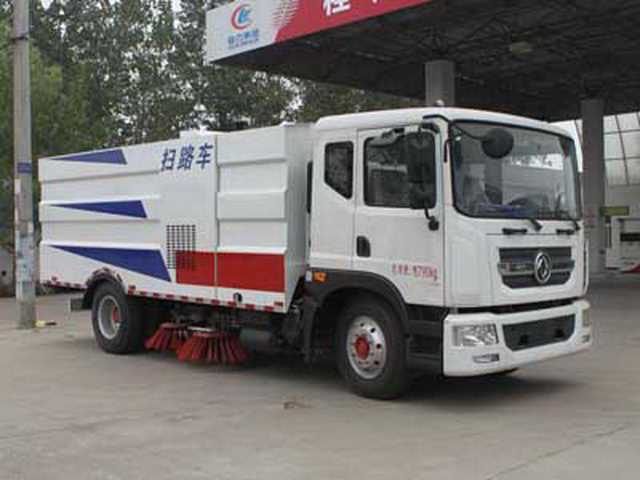

Dongfeng D9 sweeper truck, road sweeper truck
Product Parameters
| CLW5161TSLD4 Sweeper Truck Main Technical Parameters | |||
| Product Name: | Sweeper | External dimensions: | 7880,7500×2470×3100(mm) |
| Chassis model: | DFA1160LJ10D4 | Cargo box dimensions: | ××(mm) |
| Total mass: | 15790 (Kg) | Approach/Departure Angles: | 19/12, 19/11 (°) |
| Rated weight: | 7145 (Kg) | Front overhang and rear overhang: | 1230/2150, 1230/2320 (mm) |
| Curb weight: | 8450 (Kg) | Maximum speed: | 100 (km/h) |
| engine | Engine manufacturers | Displacement (ml) | Power (kW) |
| ISD160 43 ISD180 43 |
Dongfeng Cummins Engine Co., Ltd. | 4500 4500 |
118 132 |
| Emission standards: | GB17691-2005 Country IV, GB3847-2005 | ||
| Number of axes: | 2 | Front track: | 1858, 1949 (mm) |
| Wheelbase: | 3950, 4500 | Rear track: | 1806, 1865 (mm) |
| Number of tires: | 6 | Tire specifications: | 9.00-20 16PR, 9.00R20 16PR |
| Fuel type: | diesel fuel | Number of leaf springs: | 8/10+7 |
| Axle load: | 5990/9800 | Number of passengers in the driver's cab: | 3 |
| Vehicle Notes: | 1. Overall vehicle length and wheelbase (mm): 7880/4500/2150, 7500/3950/2320. 2. Protective material: Q235A carbon steel; connection method: side protection exempted, rear lower protection welded to sub-beam; rear protection cross-section dimensions (mm): 50×200; rear protection ground clearance (mm): 440. 3. ABS system manufacturer and model: Jiaozuo Boruike Control Technology Co., Ltd., J ABS. 4. Text spraying position and vehicle color are variable. 5. Optional dust collection box and single sweeping brush device. | ||
| Specialized features: |
Dongfeng D9 Dolica sweeper truck chassis configuration: Dongfeng D9 series, 2315 extended cab, 5200mm wheelbase, ISB180 50 six-cylinder engine (Cummins 180hp), Fast 8-speed gearbox, 250 double-layer frame, 10T rear axle, 9.00R20 steel wire tires, air conditioning, air brake, ABS, air suspension seat. Dongfeng D9 Dolica sweeper truck modification configuration: Stainless steel body, 9 cubic meter capacity, with 2 centrally mounted sweeping discs, Cummins 170hp auxiliary engine; Italian motor; German high-pressure water pump (front spray/side spray/center spray/rear spray/rinsing water gun/garbage bin self-cleaning device); universal high-pressure curb cleaning nozzles, Weilong low-pressure pump (front spray); stainless steel garbage bin; stainless steel high-pressure pipeline; German controller; Korean control box; PLC one-button control; rear LED arrow lights; oil, garbage bin, and water tank all equipped with anti-overflow low water level alarm devices; indoor monitor for reversing and sweeping status. 18m high-pressure flushing reel. Sweeping width 3.5m; washing pressure 10MPa; suction particle size φ110mm.
Seven advantages of the Dongfeng D9 Dolica sweeper truck : 1. The road surface is cleaned by a combination of suction and sweeping to collect garbage, wet dust removal, electro-hydraulic control, and hydraulic tipping unloading. 2. An auxiliary engine is used to drive the blower and hydraulic system, ensuring continuous operation during travel and maintaining the continuity of the cleaning process. 3. The structure of "centrally placed four sweeping discs + spray dust suppression device + central partition + rear suction nozzle" is adopted to prevent sand and gravel from splashing and raising dust during the sweeping process. This layout facilitates the adjustment and maintenance of the sweeping device and suction nozzle, and the vehicle has good passability when moving to other sites. 4. The transmission between the auxiliary engine and the fan is equipped with an automatic clutch, which ensures that the auxiliary engine can be automatically disengaged from the fan during no-load start-up and shutdown, reducing the impact on the auxiliary engine and improving its operational reliability and service life. 5. The sweeping disc has an automatic obstacle avoidance protection function and an automatic reset function. It automatically retracts when it encounters an obstacle and automatically returns to its original position after passing the obstacle. 6. The sweeping disc speed can be adjusted according to various cleaning conditions, ensuring good cleaning results under various pollution levels. 7. It adopts an advanced and efficient special fan and a fully floating suction nozzle that can automatically level with the road surface, resulting in good cleaning effect and long service life.
| ||
