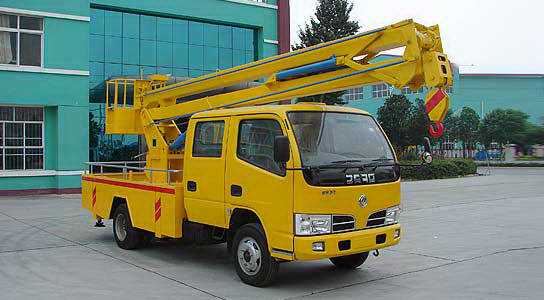

Dongfeng Kingpah Aerial Work Platform
Product Parameters
The crane boom extends 1100mm forward; the cab is optional and comes with the chassis.
| Dongfeng Kingmax Aerial Work Platform Truck Main Technical Parameters | |||
| Product Name: | Dongfeng Kingpah Aerial Work Platform | External dimensions: | 7400×1980×3110(mm) |
| Chassis model: | EQ1042NJ20D3 | Cargo box dimensions: | ××(mm) |
| Total mass: | 4325 (Kg) | Approach/Departure Angles: | 19/11(°) |
| Rated weight: | (Kg) | Front overhang and rear overhang: | 1032/1968(mm) |
| Curb weight: | 4000 (Kg) | Maximum speed: | 90 (km/h) |
| engine | Engine manufacturers | Displacement (ml) | Power (kW) |
| YC4F90-30 CY4102-C3F YN27CR YN30CR SD4BW70-3R 4D22E YCND27-90-30 YCND27-100-30 CY4100-E3F 4JB1TI | Guangxi Yuchai Machinery Co., Ltd., Dongfeng Chaoyang Diesel Engine Co., Ltd., Chengdu Yunnei Power Co., Ltd., Jiangsu Sida Power Machinery Group Co., Ltd., Anhui Quanchai Power Co., Ltd., Guangxi Yuchai Machinery Co., Ltd., Guangxi Yuchai Machinery Co., Ltd., Dongfeng Chaoyang Diesel Engine Co., Ltd., Chengdu Chengfa Automobile Engine Co., Ltd. | 2659 3856 2672 2977 2545 2156 2659 2659 3707 2771 | 66 70 66 76 70 65 66 75 73 75 |
| Emission standards: | GB3847-2005,GB17691-2005 Country III | ||
| Number of axes: | 2 | Front track: | 1506/1466 (mm) |
| Wheelbase: | 3300 | Rear track: | 1466 (mm) |
| Number of tires: | 6 | Tire specifications: | 7.00-16,6.50-16,7.00R16,6.50R16 |
| Fuel type: | diesel fuel | Number of leaf springs: | 8/9+5, 6/8+4 |
| Axle load: | 2100/2225 | Number of passengers in the driver's cab: | 2+3 |
| Vehicle Notes: | The crane boom extends 1100mm forward; the cab is optional and comes with the chassis. | ||
| Specialized features: | Our company specializes in manufacturing Dongfeng Xiaobawang aerial work platforms, Dongfeng 145 aerial work platforms, Jiangling 5030DS light truck aerial work platforms, Foton 5052 aerial work platforms, and Aoling 5049 light truck aerial work platforms. We also provide aerial work platform pictures, prices, and technical parameters. Our company is a well-known domestic manufacturer of special vehicles for landscaping, petrochemicals, and municipal sanitation. Our company's aerial work platforms use original chassis and have a flat-head design, allowing for greater personnel capacity. They offer stable and reliable performance and are primarily used for electrical wiring maintenance, high-altitude cleaning, tree pruning, and other high-altitude operations. | ||
