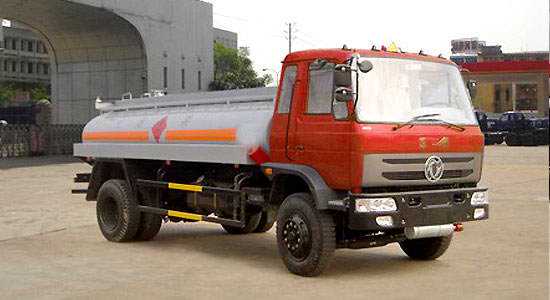

Dongfeng single bridge oil tanker truck
Product Parameters
| Dongfeng Single-Axle Tanker Truck Main Technical Parameters | |||
| Product Name: | Dongfeng single-axle oil tanker | External dimensions: | 7950×2400×2450(mm) |
| Chassis model: | EQ1080GSZ3GJ | Cargo box dimensions: | ××(mm) |
| Total mass: | 8490 (Kg) | Approach/Departure Angles: | 30/14(°) |
| Rated weight: | 2990 (Kg) | Front overhang and rear overhang: | 1250/2200(mm) |
| Curb weight: | 5305 (Kg) | Maximum speed: | 95 (km/h) |
| engine | Engine manufacturers | Displacement (ml) | Power (kW) |
| YC4E140-31 YC4E160-31 ISDe140 30 ISDe160 30 EQD160-30 YC4E140-33 YC4E160-33 YC6J160-33 | Guangxi Yuchai Machinery Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Commercial Vehicle Engine Plant of Dongfeng Motor Co., Ltd. Guangxi Yuchai Machinery Co., Ltd. | 4260 4260 4500 4500 6234 4260 4260 6494 | 103 118 103 118 118 105 118 118 |
| Emission standards: | GB3847-2005,GB17691-2005 Country III | ||
| Number of axes: | 2 | Front track: | 1750, 1850/1700, 1800 (mm) |
| Wheelbase: | 4500 | Rear track: | 1700, 1800 (mm) |
| Number of tires: | 6 | Tire specifications: | 7.50-20, 8.25-20 |
| Fuel type: | diesel fuel | Number of leaf springs: | 9/11+8 |
| Axle load: | 3320/5170 | Number of passengers in the driver's cab: | 3 |
| Vehicle Notes: | Name of transported medium: gasoline; density: 700 kg/m³; total tank capacity (effective volume) is 4.48 m³; tank dimensions (length × major axis × minor axis) are 5300 × 1605 × 785 mm. | ||
| Specialized features: | ★The oil tankers modified by our company are all based on domestically mature original chassis. Users can also bring their own chassis, and our factory will provide the production and modification of the superstructure components. ★Tank Material: Carbon steel, stainless steel, steel-lined plastic, fiberglass, all-plastic tank (polyethylene) ★ Tank Type: Square/round, oval, round ★ Oil Pump: Self-priming pump, gear pump, chemical pump, stainless steel pump ★ Oil Meter: Single counter, dual counter, tax-controlled fuel dispenser ★ Functions: Can be independently compartmentalized, can be used to dispense different types of oil, chemicals, and food. The design allows for pump-in/pump-out through the meter, pump-in/pump-out without metering, gravity flow through the meter, and no metering. ★ Tanker trucks can all be designed as chemical trucks. ★ All tanker trucks can be equipped with computerized refueling machines. ★A wide range of tonnage options are available for tank trucks to meet user needs. ★The tanker truck is equipped with multiple anti-surge baffles inside the tank. High-pressure gas leak testing is used to ensure the tank has high strength, a stable center of gravity, and safe and stable vehicle transport. | ||
